🐛 Bug Report biped-plus
🔵 Planned

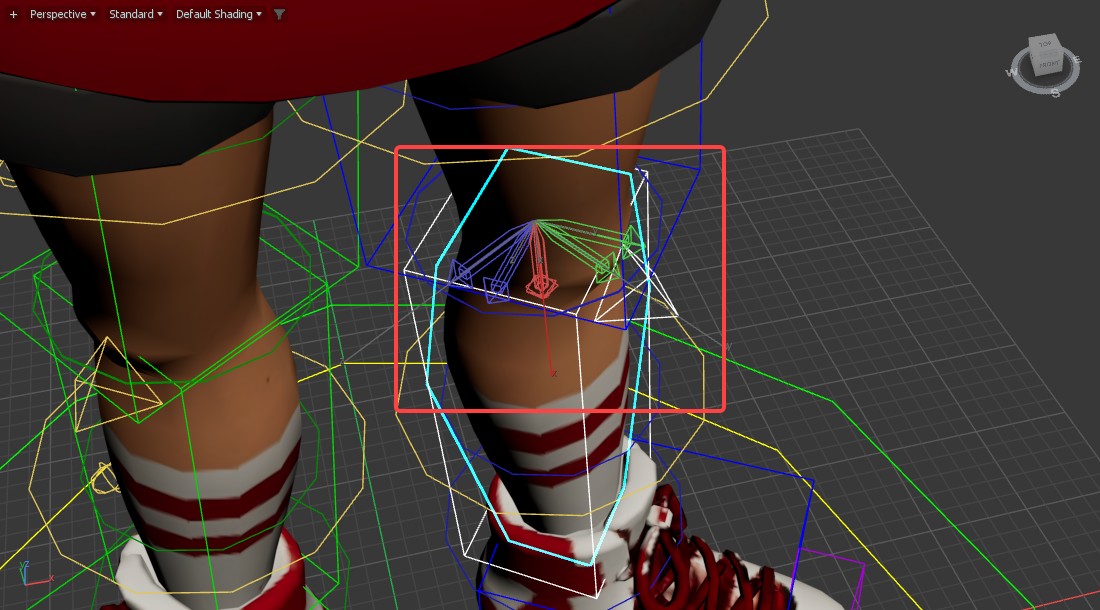

Knee direction issue (Calf_Cor)

redkuro 2026-09-15
ADMIN Admin Reply

Hello! Thank you as always for your interest in our tools.

We confirmed this as a double-knee twist bug, and we really appreciate you reporting it.
We will include the fix in the next build and release it.

For now, running the MaxScript below should resolve the issue.
(This assumes the default node names were not renamed.)

If anything else comes up, please contact us anytime!

-- MaxScript (assumes default node names were not renamed)
(
    local sides = #("L", "R")

    fn requireNode name = (
        local n = getNodeByName name
        if n == undefined do throw ("node missing: " + name)
        n
    )

    fn applyCalf50Orient side = (
        local dest = requireNode ("DrvPt_" + side + "_Calf_50")
        local tgts = #(
            requireNode ("DrvPt_" + side + "_Calf"),
            requireNode ("DrvPt_" + side + "_ThighNoTwist")
        )

        local oc = Orientation_Constraint()
        dest.rotation.controller = oc
        oc.relative = false

        local n = oc.getNumTargets()
        for i = n to 1 by -1 do try (oc.deleteTarget i) catch ()

        for t in tgts do oc.appendTarget t 50.0
        try (oc.weight[1] = 50.0) catch ()
        try (oc.weight[2] = 50.0) catch ()

        format "ok  %  targets=% %\n" dest.name tgts[1].name tgts[2].name
    )

    undo "OrientConstraint Calf_50 L/R" on (
        for side in sides do applyCalf50Orient side
    )
)
